Two Phase Hybrid NEMA 34 Stepper Motor 1.8 Degree With Brake

Two Phase Hybrid NEMA34 Stepper Motor With Brake 1.8 Degree​

Product description

• Automatic assembly line

  Automatic assembly line, improve production efficiency, low cost without human operation, one line down intelligent mechanical automatic assembly

• Forward/Reverse Rotation,Pause and Hold

  The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.

• Stepper motors are economical, accurate, and easy to control, and they can operate reliably in a variety of environments (depending on the level of protection IP chosen) preferably in machines with additional enclosures or in clean environments

Specifications

Radial Load&Axial Load

Advantage of Product

• Prostepper motor use of a unique stator the chnology to ensure that the motor stator teeth grinding and smooth high accuracy of the hole, the work of the process of speed stability is not lose step
• Prostepper motorcoil is made of 100% pure copper enameled wire , advanced winding threading process, copper wire is evenly arranged, good overall motor stability , the long time does not appear deformation and noise and so on.
• High quality motor steel, the load on the shaft can produce high torque the inertia ratio, and can eliminate, the system error due to the use of reduction gears

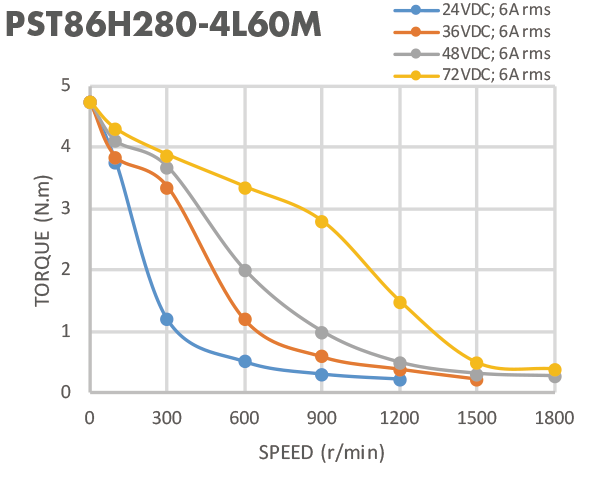

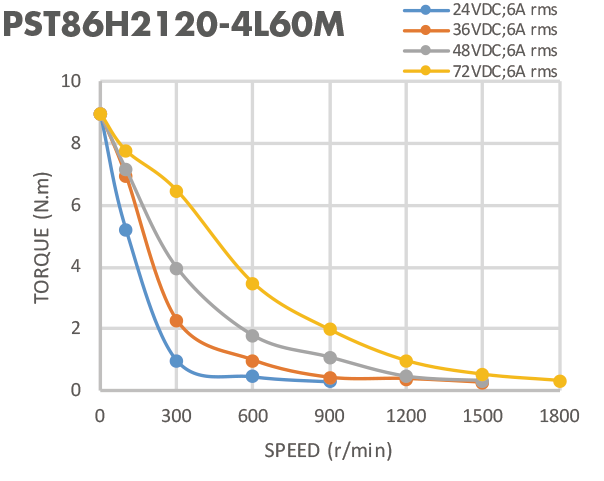

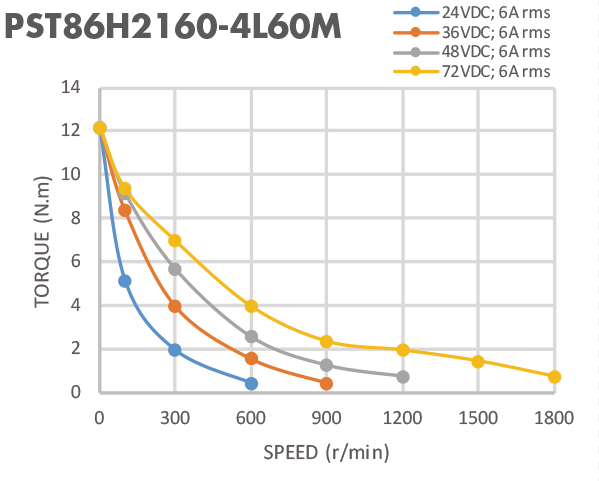

• Speed/Torque Characteristics(Reference Value)

Tips: How to overcome the vibration and noises of 2-phase hybrid stepper motor when rotating at low velocity?

The vibration and noise of the stepper motor rotating at low velocity its the intrinsic defects, which can be generally overcome by adopting following schemes:

1. If the stepper motor works at resonance region, the resonance region can be evaded by changing mechanical transmissions such as velocity ratio.

2.Use subdivided driver, which is the most common and simple method.

3.Replace for the stepper motor with smaller stepping angle, like 3-phase or 5-phase stepper motor.

4.Replace for AC servo motor, which can nearly overcome vibration and noise, but the cost is quite high.

5.Add magnetic damper to the shaft of motor, such product has been available in the market, but the mechanical structure is changed a lot.
